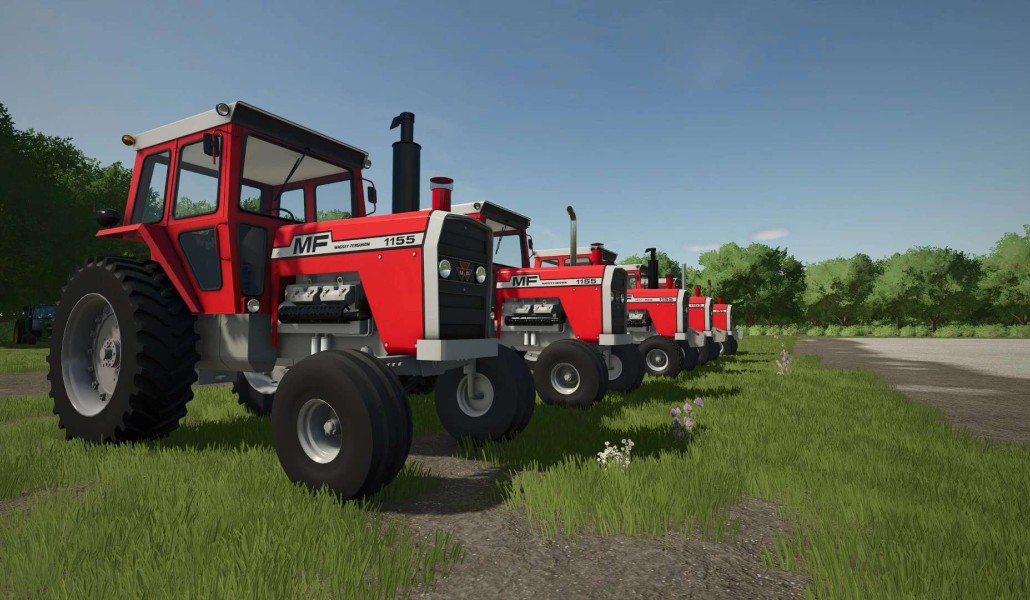

The Massey Ferguson 1155 is a robust row-crop tractor produced between 1973 and 1978, designed for heavy-duty agricultural tasks.
Here’s an overview of its key specifications and features:
Engine & Performance
Engine: Perkins AV8.540, 8.9L (540 ci) 8-cylinder diesel
Power Output:
Drawbar (claimed): 117 hp (87.2 kW)
PTO (claimed): 140 hp (104.4 kW)
Drawbar (tested): 117.8 hp (87.8 kW)
PTO (tested): 140.97 hp (105.1 kW)
Fuel Tank Capacity: 55 gallons (208.2 L)
Hydraulic System: Closed center, 22 gallons (83.3 L), 2100 psi (144.8 bar)
Hydraulic Pump Flow: t20 gpm (75.7 lpm) (agro-specs.com, manytractors.com)
Transmission & Drivetrain
Transmission Options:
12-speed two-speed power shift
8-speed gear
Drive Type: Two-wheel drive (2WD)
Brakes: Hydraulic wet disc
Steering: Power steering(TractorData, agro-specs.com, TractorData)
Dimensions & Weight
Wheelbase: 109 inches (276 cm)
Length: 180 inches (457 cm)
Height (with cab): 113.5 inches (288 cm)
Weight:
Shipping: 11,750 lbs (5,329 kg)
Operating: 14,905 lbs (6,760 kg)
Ballasted: 20,460 lbs (9,280 kg)
Tire Sizes:
Front: 14L-16
Rear: 18.4-38(agro-specs.com, manytractors.com, TractorData, TractorData)
Hitch & PTO
Rear Hitch: Type II/III
Control: Position and draft control
PTO:
Type: Independent
Speeds: 540/1000 RPM
Engine RPM: 540@2000, 1000@2000 (TractorData, TractorData, AllMachines)
Common Issues & Maintenance Tips
Owners have reported that the Massey Ferguson 1155 is generally reliable, with a durable engine and transmission. However, some common issues include:(TractorData)
Final Drive Wear: The planetary drive system, shared with the 1105 model, may experience wear under heavy use. Regular maintenance and timely replacement of components can mitigate this issue.
Charge Pump Failure: A failing charge pump can lead to hydraulic system issues. It’s advisable to monitor hydraulic performance and address any irregularities promptly.(Yesterday’s Tractors Forums)
Additional Information
Original Price (1978): $25,000
Cab: Standard
Electrical System: 12V with alternator(TractorData, TractorData)
For more detailed specifications and historical data, you can refer to the TractorData.com Massey Ferguson 1155 page.
If you’re considering purchasing a Massey Ferguson 1155 or need further information on its maintenance and parts, feel free to ask!
